Model C

The Pegasos Coldblood – our pegasious transporter

Main Purpose

This model is our biggest vehicle with the combined capability of travelling on land and in the air and for which both capabilities are equally given. So symbolically spoken this vehicle is, just like our Model W, a real flying horse.

The main purpose of our Model C is normal transport of goods, just like usually done by transporters nowadays. So simply spoken this vehicle is a flying transporter, or in our words a pegasiousThis term denotes the characteristic of having the combined capability of travelling on land and in the air. The ... More transporter.

Our Model C is therefore able to serve as an addition resp. as an alternative to usual transporters, especially in situations in which travelling on land alone is not optimal, e.g. if road infrastructure is often overloaded, damaged/out of order, or if road infrastructure is not available at all.

Specific Characteristics

Apart from the combined capability of travelling on land and in the air - and also apart from the common features, which have already been presented in the vehicles section - this model has certain specific characteristics which will be further described below.

Disclaimer All pictures shown below do only reflect the first state of development (), i.e. the pictures only show technical drawings and not actual existing vehicles. Also the actual final shape may differ from those drawings.

pegasious transporter, pegasious van, flying transporter, flying van

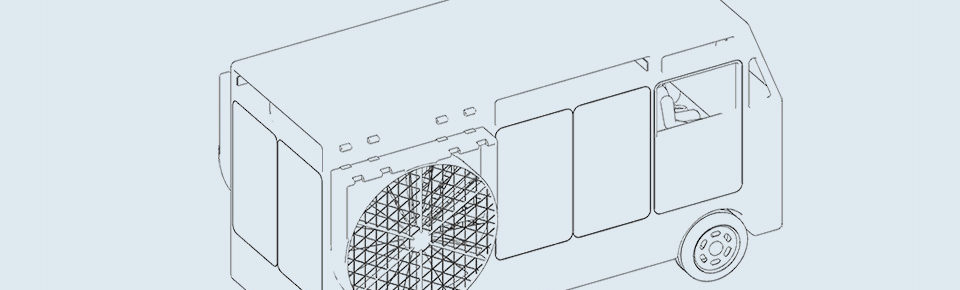

On land

In land mode all propeller protection frames with integrated electrically driven propellers are folded down, resp. they are retracted and stored under the vehicle ceiling by some pivotal resp. extension mechanism. They are arranged in a way so that the doors for loading and unloading the vehicle are not covered and hence can be opened whenever required.

The wheels are driven by electrical hub motors and change of direction is controlled by an appropriate steering mechanism.

For safety reasons the vehicle is operated in this state by the same controls (Joysticks or Touchpad, depending on customers preferences) as in aerial mode.

In this state the vehicle’s width is smaller than an usual street width and hence our Model C is compatible with normal land vehicle infrastructure.

Transition & in the air

In transition mode (land <-> air) all protective propeller frames with integrated electrically driven propellers are folded up, resp. pulled out by respective mechanisms.

Like usual with multicopters - which this vehicle is in this state - change of direction (e.g. straight ahead, sidewards or turning around the vertical axis) is controlled by adopting the relative speed of the propellers.

For safety reasons the vehicle is operated in this state by the same controls (Joysticks or Touchpad, depending on customers preferences) as during land mode.

In this state the vehicle’s width is wider than an usual street width, however because the propellers are relatively high above ground they do not interfere with most other objects which are usually present in the land vehicle infrastructure (e.g. other vehicles or persons). This means that our Model C is still compatible with normal land vehicle infrastructure in this state in most cases and therefore take-off and/or landing in principle is possible almost everywhere when taking appropriate care.

The relatively heavy power source is located in the bottom of the vehicle and together with the folded up, resp. pulled out propellers this results in a center of gravity of the vehicle which clearly lays below the propeller plane, i.e. this results in a stable flight configuration.

pegasious transporter, pegasious van, flying transporter, flying van

Specific Details

Disclaimer All details given below do only reflect the first state of development, i.e. these details are not of an actual existing vehicle. Also the actual final details may differ from the ones given here.

Key Features

Seats

Loading space

Transition between operation modes

Automatic: in less than 1 minute

Power supply

Internal combustion engine with standard gasoline for land vehicles

Controls

Direct controlled by same controls (joysticks/touchpads) in all operation modes

Safety

Redundant propellers
Redundant power supply
Stable flight by design

Performance

General

Max. payload: ~1200 kg

Land Mode

Max. speed: ~140 km/h
Max. operation range: ~1200 km

Aerial Mode

Max. speed: ~70 km/h
Max. time in the air: ~45 minutes

Technical Specifications

General

Weight: ~3500 kg
Fuell capacity: ~400 l
Max. length/width/height of loading space: ~3,2 m / ~1,6 m / ~1,4m
Min. loading height: ~0,9 m

Land Mode

Max. power: ~300 kW
Max. length/width/height: ~5 m / ~2,4 m / ~2,7 m

Aerial Mode

Max. power: ~3000 kW
Max. length/width/height: ~6,5 m / ~5 m / ~2,7 m

Applications

With it’s specific characteristics and abilities our Model C has many potential applications. A few of them are listed below.

For Individuals Supply of goods in remote areas (mountains, islands, deserts, …), …

For Companies / Institutions

Transport / Logistics: delivery (in remote areas, e.g. mountains, deserts, islands, …), relocation (e.g. moving and lifting furniture to penthouse), taxi, …
Media / Events: in front of the camera

For Authorities / Emergency Services Search and Rescue with fast response (direct connection, short cuts, preventing detours and traffic jams, …), with access where otherwise not possible (wildfires, mountain rescue, collapsed buildings, floodings, …), …

For Military transport of troups and equipment (substitute for helicopters), overcoming obstacles (gorges, collapsed bridges, water/islands, …), …

Orders/Pre-Orders

This model is still under development and hence we do not accept orders/pre-orders for this model at the moment. Please check back for updates regularly.

At the moment we are mainly looking for financial supporters in order for being able to build a prototype of this and of our other models. If you want to support us with this next big step you can do so by clicking the support button below.

Support Us!
